Bathroom Zones

0 1 2 and 3. In this zone a minimum rating of ip44.

Bathroom Lighting Zones Regulations The Lighting Superstore

For example zone 0 covers areas inside baths or showers.

Bathroom zones. Ipx7 means the product can be immersed in water up to 1 meter for 30 minutes. If there is no shower basin zone 0 is 10cm high from the finished floor level and extends to 12m around the fixed shower head. Zone 0 this zone requires a minimum of ipx7.

In this zone again an ip rating of at least ipx4 is required. The bathroom zone number refers to the amount of water likely to be present. This is the area directly above zone 0 which is the outer edge of the shower basin or bath extending to the horizontal ceiling or 225cm from the floor whichever is lower.

Zone 1 is a circle with a radius of 12m from the fixed water outlet of the shower and to a height of 225m above floor level. This is the area directly above a bath and within a shower cubicle. This zone requires a minimum of ipx7 and only 12v selv equipment should be used.

For showers with a tray or tub below the zones are identical to the bath zones above. Any fitting or appliance within zone 2 must be ipx4 splash proof or better as well as a maximum of 12v selv with the transformer located beyond zone 2. Zone 1 requires a minimum of ipx4.

The lower the zone number the higher the ip rating needs to be. Zone 2 same as above requires a minimum of ipx4. Bathroom zone 3 outside zones zone 3 is anywhere.

Zone 0 for a shower room is the area inside the shower basin. These areas must have a particular. Zone 2 is an area stretching 06m outside the perimeter of the bath and to a height of 225m from the floor.

Zone 0 is inside the bath or shower itself. Electrical safety zones 0 and 1 for showers without shower basins or trays. Zone 1 is the area above the bath to a height of 225m from the floor.

If there is no tray then zone 0 is from the floor to a height of 01m and the same horizontal extent as zone 1. Outside zones beyond zone 2 when the size of a bathroom extends beyond zones 0 1 and 2 portable equipment can be used if its flex length does not enable them to be used in zone 2. Any fitting used in this zone must be low voltage max 12v and be rated at least ip67 which is total immersion proof.

For utmost safety the transformer or power supply pack should be installed outside the bathroom area. Applicable to both zone 1 or 2 a selv fans with a rating of ipx5 or above may also be installed in these areas. Bathroom zones are areas where electrical equipment must offer a certain degree of protection against water.

Zone 0 for a bathroom is the area inside the bath. It is good practice to regard the area around a wash basin within a 60cm radius of any tap as zone 2. Zone 0 is defined as any area in a bathroom that can hold water.

The three bathroom zones are. Bathroom zone 1 2 ipx5. This is the area within a bath tub only 12v selv safety extra low voltage equipment can be used.

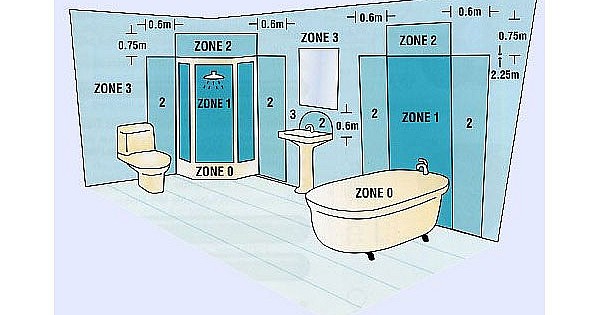

So any area inside the bath basin or shower tray. The diagram shows a bathroom split into four clear zones.
