However if the area served is large more 5A or 6A circuits. All cabling shall be as specified in Clause 411 and shall be installed in accordance with the requirements.
Buku Ii 1 Mcb Elcb Electric Motor Fuse Electrical
I see that example as no different to two 15mm conductors leaving a B10 MCB feeding lighting.
2 lighting circuits 1 mcb. By John Ward. Its common to have a lighting circuit and then a EM light supply out of the same mcb your only limitation to the no of cables in one mcb is the ensuring the mcb clamp is tight on all conductors. Types of MCB based on Tripping Characteristics.
Circuit - An assembly of electrical equipment supplied from the same origin and protected against overcurrent by the same protective devices. I dont always agree with you un but I am with you on this one. Some reasons for separate mcb for each circuit are.
Replace bathroom light with IP rated fitting - 50 VAT. The board is fully populated with breakers. An MCB is designed to protect against both overloading and short-circuiting.
2 What is the total load of each circuit. 16 Amps and 20 Amps- usually these two ratings are used in boilers and heaters depending on the power rating. If the CU is located central to a house I have in the past took 2 lighting circuits on the same MCB same floor level 1 to the left the other to the right with about 10 lights in total less voltage drop see nothing wrong with that not the same as 2 rings on same circuit.
Both 15mm conductors form one circuit. Yes its fine as long as the breaker is selected for the protection of either cable and all other necessary values are met. 10 Amps- large lighting circuits- These are becoming rare in domestic settings as a result of changes in technological trends tending towards lower lighting sources such as LED.
Lighting circuits are usually on a 6A MCB or 5A fuse though 10A can be used with some extra restrictions now removed in the 17th edition of the wiring regs for large circuits. And you find a damaged cable in the upstairs ring main. 6 Amp- for standard lighting circuits.
There is one lighting circuit on each lighting MCB. Signs of thermal damage to Consumer unit and MCBs due to a door bell transformer within the CU over heating Remedial work. Bathroom light not IP rated Remedial work.
These are detected differently using separate processes. Overload protection is provided by the bimetallic strip using thermal operation whereas short-circuit protection is provided by the tripping coil via electro-magnetic operation. Will be taken back to the consumers unit and connected to the same MCB as the local lighting circuit confirmation of connection method shall be provided from the Contract Administrator.
Install separate housing for doorbell transformer to stop thermal damage - 7500 VAT. Please try again later. An error occurred while retrieving sharing information.
As above its classed as one circuit - if it feeds 2 seperate loads then test both legs and record the worse of the readings. Lighting Circuits Part 2 - Wiring Multiple Switches 2 way and Intermediates. Individually they are probably quite safe but put them all together and you may well have overloaded that mcb.
Consider a callout to a property with a socket fault. If you mean for instance 2 radial socket circuits on one MCB. Yes one mcbone circuit agreed as OMS polnted out earlier but that doesnt mean only one conductor per mcb the mcb defines the circuit so however many cables are in there its still only one circuit however I think youre saying there should only be one conductor in each mcb.
MCB CharacteristicTrip Curves Type BC D What are. 32 Amp Ring Final. Types of MCB based on Number of Poles.
1 If one mcb trips then you still have some lights working elsewhere. Working Principle of Miniature Circuit Breaker MCB Tripping Mechanism in Miniature Circuit Breaker. By definition you cant have two lighting circuits at one MCB - can you double up the conductors at the MCB - yes but be careful of requirements to divide installations to avoid hazards and minimise inconvenience.

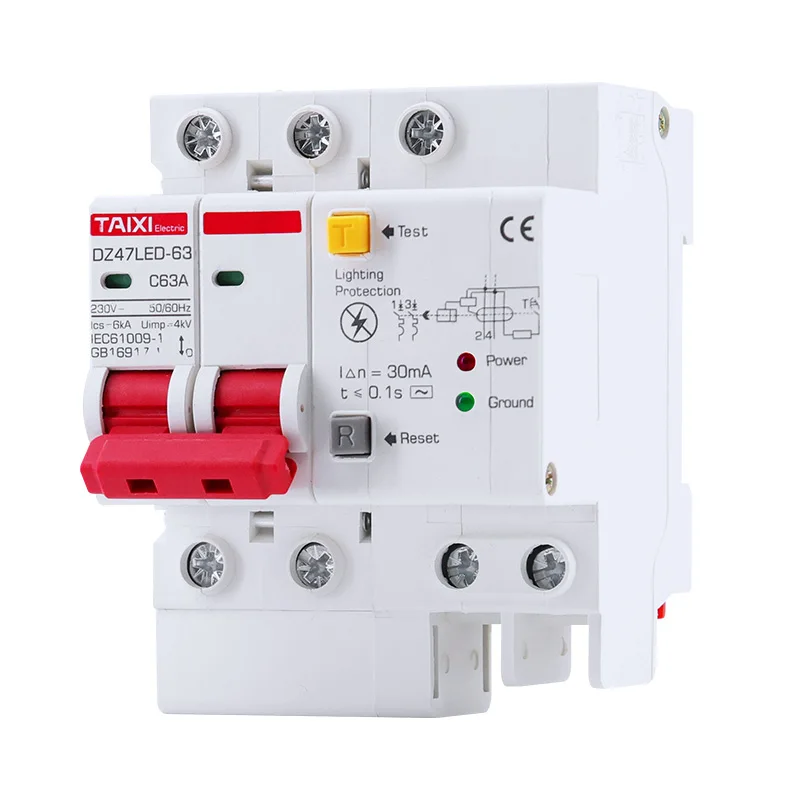

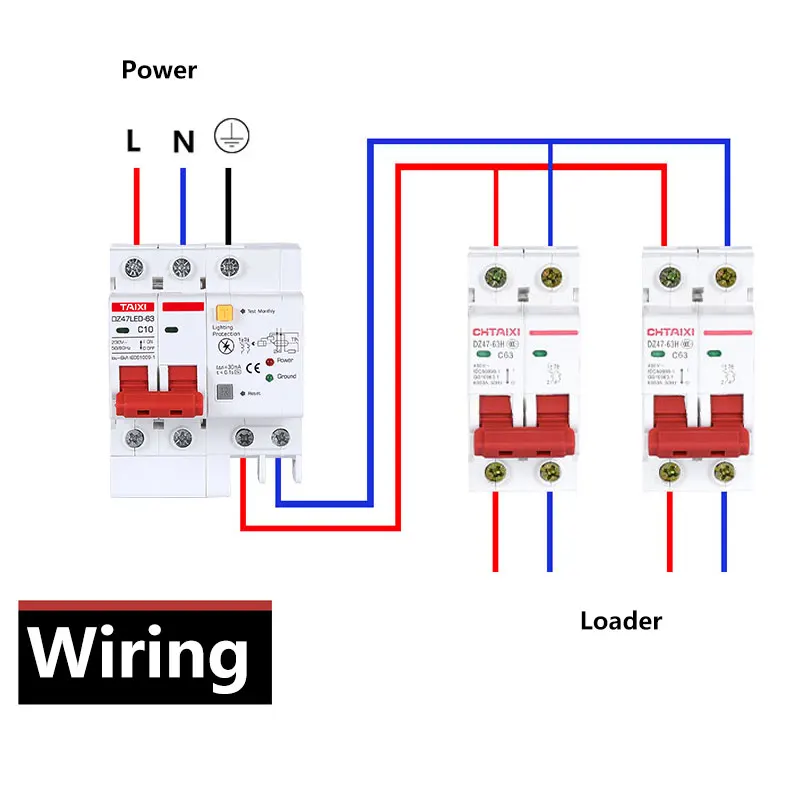

Spd Surge Protector Penangkal Petir 2 Tiang Dz47le Circuit Breaker Rcbo Rccb Mcb Rcd 16a 20a 25a 32a 40a 50a 63a Dz47led Pemutus Sirkuit Aliexpress
Mcb Sebagai Alat Proteksi Instalasi Listrik Tidak Wajib Dipasang Amanitekno
Jual Mcb 1 Phase Schneider Merlin Gerin 4a 880 Watt Circuit Breaker Sni Kota Tangerang Selatan Pediace Tokopedia
How To Install Switches Socket Outlets Mcb Light Fittings And Elcb My Electrical Diary
Task 1 Interpret Two Different Lighting Circuit Chegg Com
Mcb Sebagai Alat Proteksi Instalasi Listrik Tidak Wajib Dipasang Amanitekno
How To Wire Light Switch One Way Light Switch Two Way Light Switch Three Way Light Switch Youtube
Two Radial Circuits Into One Mcb Electrician Talk Forum Talk Electrician Forum
China Acti A9 Ic65n 1p 1p N 2p 3p 4p Miniature Circuit Breaker 1 2 3 4 6 10 16 20 25 32 40 50 63 80 100 120a Mcb China Mcb Schneider Miniature Circuit Breaker
Mcb 2 Poles X 63 A Werden Electromaterial
Jual Mcb Listrik Inscom 1p 1a Mini Circuit Breaker Inscom 1 Phase 1a Kota Surabaya Igi Mart Tokopedia
Jual Mcb 1p 6a Schneider Domae Dom11340sni Gudang Listrik

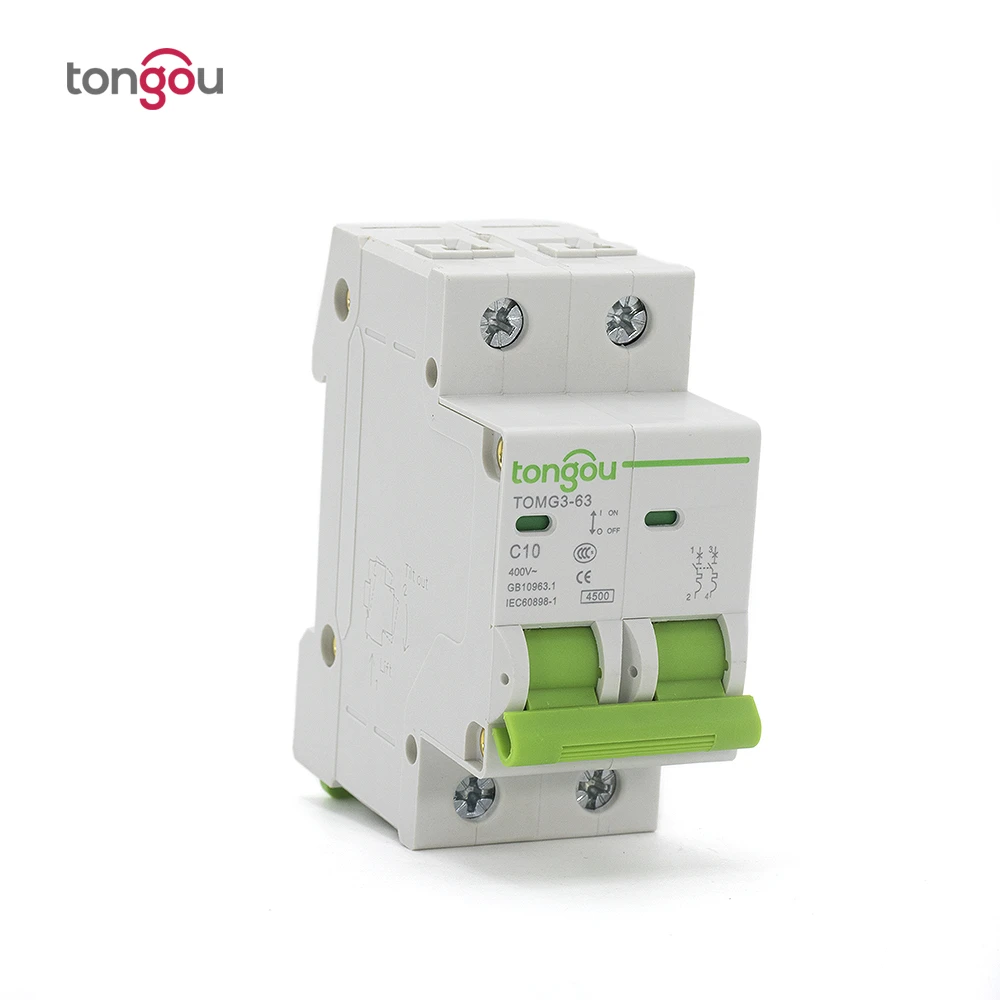

2 Pole 10a Mcb Miniature Circuit Breaker C Type Ac 110v 230v 400v Short Circuit Protection Tomg3 63 Circuit Breakers Aliexpress
